AMD Ryzen™ 9 9950X Tray | 16 Zen 5 Cores up to 5.7 GHz for AM5 Workstations
The Ryzen 9 9950X is AMD's 16-core Zen 5 desktop processor: 16 cores and 32 threads, a 4.3 GHz base and up to 5.7 GHz boost, 16 MB of L2 and 64 MB of L3, at a 170 W default TDP. Built from three dies — two 4nm CPU dies and a 6nm I/O die — it is unlocked, supports DDR5 up to 256 GB and PCIe 5.0, and includes Radeon graphics. This is the tray package (100-000001277); AMD recommends liquid cooling.
32 Threads for Heavy Workloads
Sixteen Zen 5 cores with AVX-512 support suit 3D rendering, video encoding, compiling and virtual machines on a desktop AM5 board.
5.7 GHz Boost
The high boost clock keeps games responsive, so one machine can handle a working day and an evening of gaming.
Silicon Architecture & Visual Engineering
Verified packaging, cache hierarchy, and microarchitecture breakdown

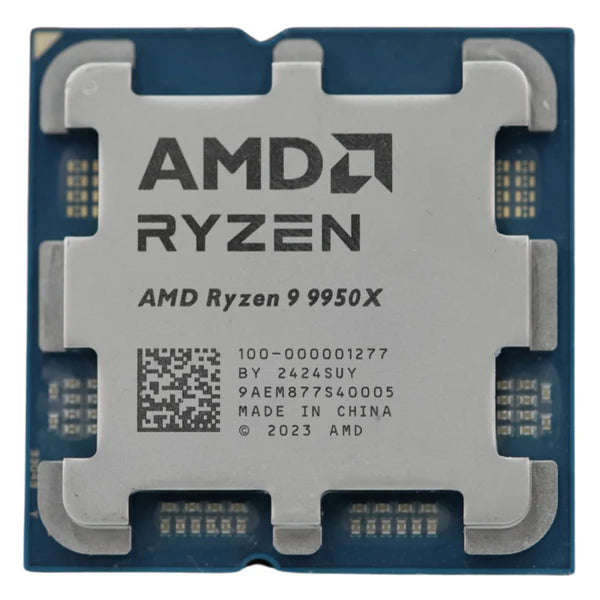

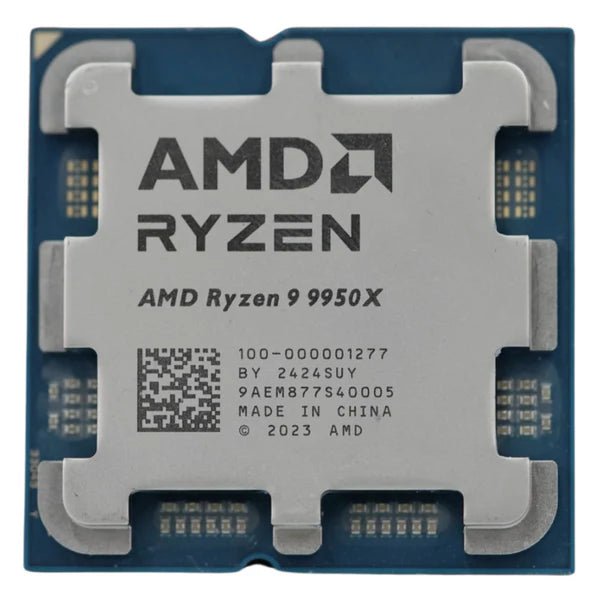

Tray Part Number on the Heat Spreader
The laser marking reads AMD Ryzen 9 9950X and 100-000001277 — AMD's tray product ID for this processor.

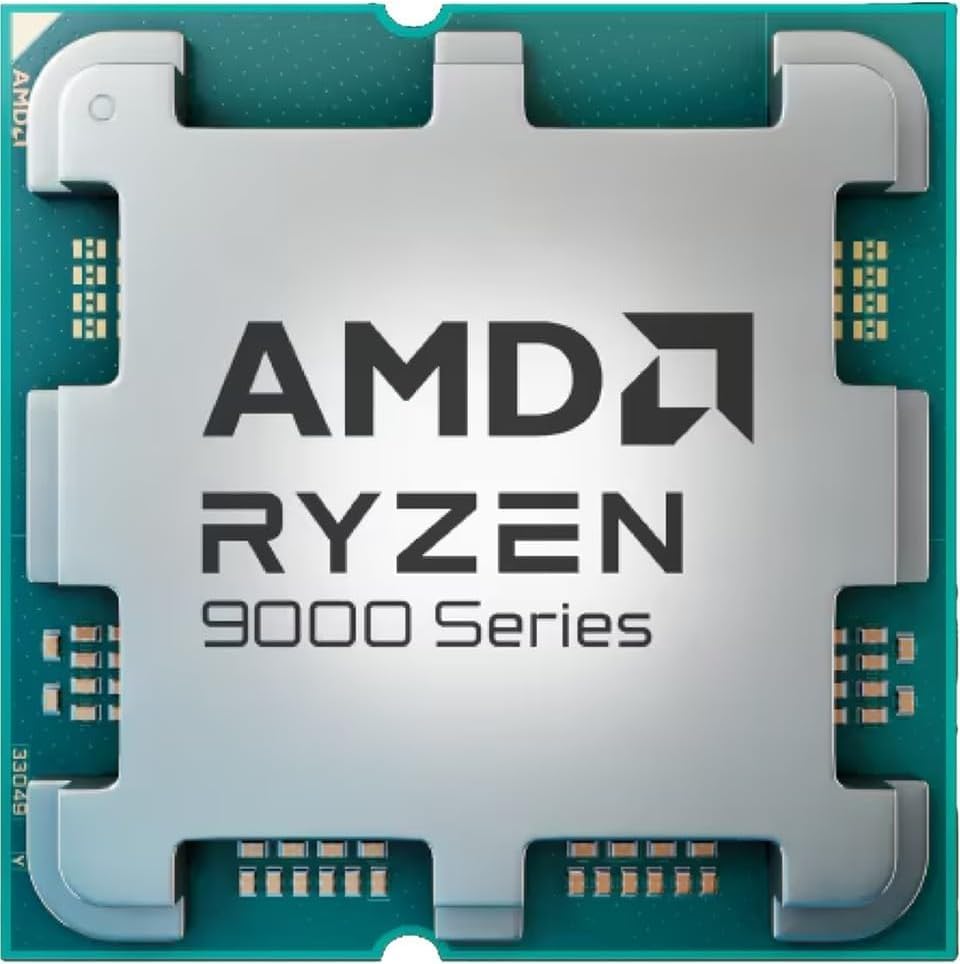

Ryzen 9000 Series Heat Spreader
Under the AM5 heat spreader sit three dies: two 4nm Zen 5 CPU dies of eight cores each and a 6nm I/O die.
Thread Count Across AMD AM5 Processors
Official thread count of AMD processors available at AHW Store
Hardware Synergy & System Pairing Guide
Recommended motherboard, cooling, RAM sweet spot, and power requirements
Technical Specifications Matrix
Verified hardware specifications directly from manufacturer datasheets
| Processor | AMD Ryzen™ 9 9950X — tray · 100-000001277 |
|---|---|
| Architecture / Codename | Zen 5 / Granite Ridge |
| Cores / Threads | 16 / 32 |
| Base / Max Boost Clock | 4.3 GHz / up to 5.7 GHz |
| L1 / L2 / L3 Cache | 1280 KB / 16 MB / 64 MB |
| Default TDP | 170 W |
| Process | TSMC 4nm FinFET (CPU dies) + 6nm FinFET (I/O die) · 3 dies |
| Socket | AM5 |
| Supported Chipsets | A620, B650, B650E, X670, X670E, B840, B850, X870, X870E |
| PCI Express | PCIe 5.0 · 28 total / 24 usable lanes |
| Memory | DDR5 dual-channel, up to 256 GB; DDR5-5600 (2 modules); ECC with board support |
| Native USB | 4 × USB 3.2 Gen 2 (10 Gbps) + 1 × USB 2.0 |
| Integrated Graphics | AMD Radeon™ Graphics, 2 cores @ 2200 MHz |
| Overclocking | Unlocked · Precision Boost Overdrive · Curve Optimizer · AMD EXPO |
| Max Operating Temp (Tjmax) | 95 °C |
| Cooler | Not included — AMD recommends a liquid cooler |
